We are not just a manufacturer of SMC production lines; we are your comprehensive partner for composite production equipment. We provide end-to-end machinery, from SMC sheet manufacturing (SMC sheet machines) and raw material preparation (BMC/DMC sigma mixers, high-speed mixers, reactors) to downstream processing (slitting and rewinding machines), alongside customized solutions for specialized materials like carbon fiber SMC.

This article will focus on the SMC production line as the central piece of your success.

SMC Production Line: The Artery of Composite Manufacturing

The complete machine is divided into four sections: the cutting section, the coating section, the impregnation section, and the winding section.

Upstream Integration - Material Preparation: The line seamlessly integrates with homogeneous resin paste prepared by our BMC/DMC sigma mixers or high-speed mixers, ensuring consistent raw material quality.

Core Process - Fiber Impregnation:

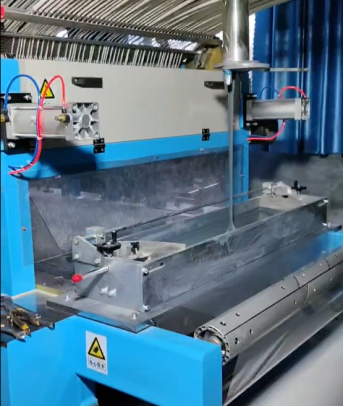

Glass/Carbon Fiber Cutting & Deposition System: Precisely cuts and evenly deposits rovings.

Three/Four-Roller Impregnation System: Ensures perfect resin impregnation and de-aeration through a combination of smooth and pegging rollers.

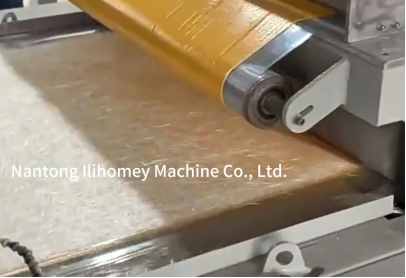

Carrier Film Lamination: Forms the standard "sandwich" sheet structure.

Downstream output - Finished product winding: The impregnated SMC sheets are sorted for packaging, and then enter the curing and subsequent processing stages.

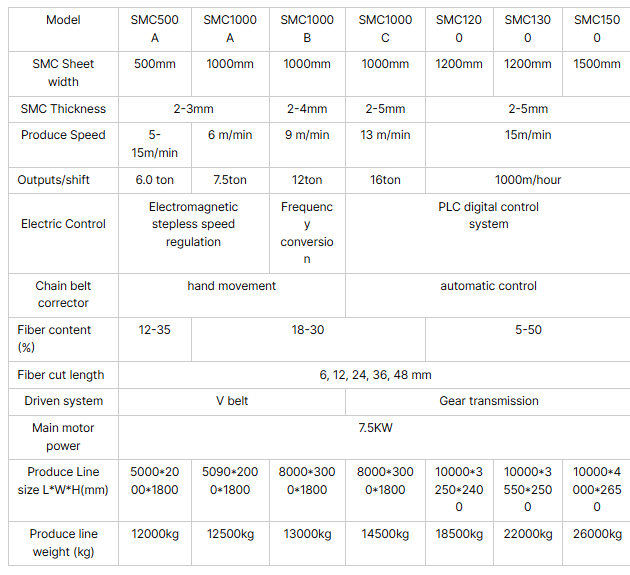

Key Performance Parameters & Selection Guide

Index		Unit	SMC-1	SMC-2	SMC-3	Test Standard
Relative Density		g/cm2	1.75-1.95	1.75-1.95	1.75-1.95	GB1033
Water Absorption		mg	≤20	≤20		CB1034
Mould Shrinkage		%	≤0.15	≤0.15	≤0.3	GB1404
Flexural Strength		Mpa	≥170	≥150	≥135	GB1042
Impact Strength		Kj/m²	≥90	≥60	≥45	CB1043
Temperature Of Deflection Under Load		℃	≥240	≥240	≥220	GB1634
Insulation Strength	Normal	Ω	≥1.0*10^13	≥1.01013	≥1.01012	GB1410
	24 Hours After Saturation		≥1.0*10^12	≥1.01012	-
Dielectric Strength		Mv/m	≥12.0	≥12.0	≥10.0	GB1408
Dielectric Loss Factor(LMHz)		-	≤0.015	≤0.015		GB1409
Dielect:ie Constant(LMHz)		-	≤4.5	≤4.5	-	GB1409
Surface Resistivity		S	≥180	≥180	≥150	GB1411
Tracking Resistance		V	≥600	≥600	≥600	GB4027
Flammability Rating		Level	FVO	FVO	-	UL-94
Long-term Heat Resistance Temperature		-	155	155	130	WEL

The producing line made of the main system as below:

1.Materials dosng and feeding,and the mixing system.

2.SMC Makng system.

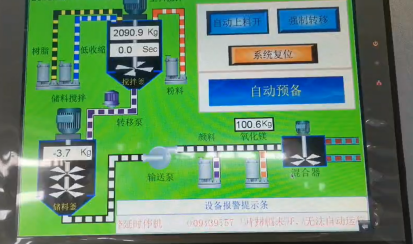

3.Instruments Control system

4.Security Protection system.

Choose a Partner, Not Just Equipment

Investing in the SMC sheet production line is the first step towards success. Choosing us means you have acquired a reliable partner who can provide a deep understanding of composite material processes and offer planning services ranging from a single equipment to an entire factory.

Let's utilize our professional SMC sheeting machines, carbon fiber SMC equipment, BMC/DMC mixers, high-speed mixing machines, reaction vessels, and cutting and rewinding machines, etc., to jointly build your core competitiveness in the future composite materials market.
